trilogy 3in1

Professional Laser Hair Removal Machine with Multi-Functions The only system that includes Diode Laser, IPL & Q-Switched ND:YAG

  • ticn

    German Engineering

  • ticn

    The Only 20,000,000 Pulse System

  • ticn

    Includes the Best 5 Year Warranty

  • ticn

    Includes Triple Wavelength Diode Laser

  • ticn

    Includes 755nm, 808nm & 1064nm

  • ticn

    Includes Full Spectrum IPL

  • ticn

    Includes Q-Switched ND:YAG for Tattoo Removal

  • ticn

    Includes 1320nm Carbon Facial

  • ticn

    Super Heavy Duty 15 Year Cycle

  • ticn

    Easy to Use Point & Shoot

  • ticn

    Full Certified Training Included

trilogymachine

The primary principle behind diode laser hair removal is selective photothermolysis (SPT). The matching of a specific wavelength of light, pulse duration, and photo energy to obtain optimal effect on a targeted tissue with minimal or no damaging effect on surrounding tissue.

  • ticn

    808nm Standard Diode

  • ticn

    (optional) 3 built-in wavelengths, 808nm, 755nm and 1064nm simultaneous release

  • ticn

    5 Celsius contact cooling tip Arctic Sapphire crystal (built-in)

  • ticn

    Glide (IMT) In Motion Technology – Ultra fast

  • ticn

    12x20mm spot size (extra large)

The diode lasers cause localized damage by selectively heating the melanin. Thereby heating up the basal stem cells in the follicle which causes hair growth. The -5° Celsius or 23° Fahrenheit degrees Arctic sapphire crystal built-in cooling tip makes the treatment painless.

  • ticn

    GERMAN Laser – 1000 watts net laser power

  • ticn

    Fluence Up To 120 J/cm2

  • ticn

    Pulse Widths Up To 400ms

  • ticn

    1-10 Hz Frequency output

  • ticn

    20-30 % reduction of growth per treatment

mactri

Trilogy Q-Switch

Tattoo Removal

Laser tattoo removal is a successful application of the theory of selective photo-thermolysis (SPTL). However, unlike treatments for blood vessels or hair removal, the mechanism required to shatter tattoo particles uses a photo-mechanical effect. In this situation, the energy is absorbed by the ink particles in a very short time, typically nanoseconds. The surface temperature of the ink particles can rise to thousands of degrees, but this energy profile rapidly collapses into a shock wave. This shock wave then propagates throughout the local tissue (the dermis) causing brittle structures to fragment. Hence the surrounding tissue is largely unaffected since it simply vibrates as the shock wave passes.

  • ticn

    Multi-function treatment application

  • ticn

    20-30% reduction of tattoo color per treatment the gold standard

  • ticn

    1064nm for black, dark blue, dark green

  • ticn

    532nm for red, yellow, pink, permanent make-up, lip-line etc.

  • ticn

    755nm for teal, light blue, light green (optional)

  • ticn

    1320 Skin rejuvenation, carbon blasting, skin tightening, collagen stimulation

  • ticn

    Low pulse width (below 8ns)

  • ticn

    1-10 Hz Frequency

  • ticn

    Easily switch between 1064nm and 532nm, 1320nm and 755nm

  • ticn

    Pulsed Q-switched

  • ticn

    Ideal for tattoo removal or re-canvasing existing tattoos

  • ticn

    Japanese capacitors – heavy duty, powerful, continual & stable outputs

TRILOGY
SMART IPL
SKIN THERAPY

(IPL) Intense Pulsed Light, also known as the principle technology for epidermal photo-rejuvenation or the photo-facial. Treatments are performed at doctor’s offices and med-spas, day-spa and aesthetic establishments. IPL can be highly effective for erasing mild sun damage, freckles, irregular pigmentation and light brown spots on the face, neck, chest and back. In a nutshell, IPL treats the skin with quick and powerful flashes of light.

The light energy then penetrates below the skin’s surface, where the unwanted brown pigment (melanin) lives. The heat breaks down this pigment into tiny particles, which either rises to the skin’s surface or gets carried away by the body’s lymphatic system. Other treatments include:

  • ticn

    Photo Dynamic Therapy

  • ticn

    Photo Facial

  • ticn

    Photo Acne Therapy

  • ticn

    Photo Vascular Therapy

  • ticn

    Hyperpigmentation Therapy

  • ticn

    Lip Plumping

  • ticn

    Rosacea

  • ticn

    Pore Size Reduction

  • ticn

    Skin Tightening

  • ticn

    Fine Wrinkles

  • ticn

    Skin Tone Management

  • ticn

    Full spectrum of light filters

  • ticn

    British Flash Lamps – High Yield – Heavy Duty

  • ticn

    Sun Damage

trilogymachine
woman-behind-the-mask-before-and-after-makeup-picture-id508374283

DEvice
specifications

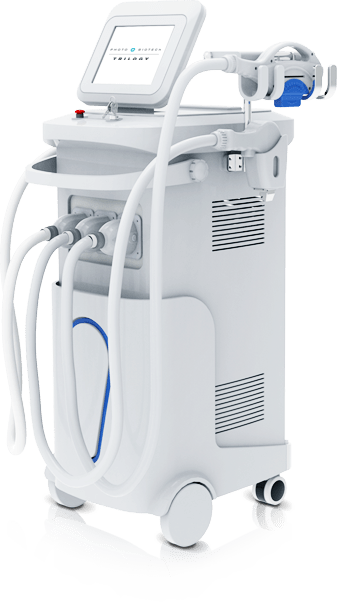

Photo Biotech Trilogy

3 in 1 Multifunction: Diode Laser (3WL) + SMART (BS) IPL + Nd Yag Laser (4WL)

SHOT COUNT 20,000,000 PLUS HEAVY DUTY - NO CONSUMABLES
Software Preset Parameters & Custom Set (DUAL)
Display system 8.4-inch Color microcomputer touch screen
System 808nm, 755nm, 1064nm Diode Laser & Q-Switch ND:YAG Laser & IPL
Laser Power High Power Dedicated Power Board for Each Modality
TRIPLE Wavelength 755nm 808nm, 1064nm ±0.5% simultaneous release in one handpiece
Power 3000W, 4 Independent dedicated power boards
Diode laser Frequency 1-10Hz
Diode laser energy 60J/cm2(Optional)
Diode laser Pulse Duration 5~ 650ms (Optional)
Diode laser Spot size 12x22mm large default Available: 10*10 &12*12& 10*20 &15*27mm optional
Nd yag laser energy 1-1600mJ
Nd yag laser frequency 1-10HZ
Wavelength 430/530/560/590/640-1200nm(standard)
Spot size 15*50mm2 ;12*30mm2 /12*45mm2/8*40mm2
IPL Light Energy 10~50 J/cm2 (adjustable)
Pulse Duration 2~15ms (adjustable)
Pulse number 1~15 pulses (adjustable)
Delay Time 5~50 ms (adjustable)
Integrated Skin Cooling -4~10degree
Cooling system Air & Close Water Circulation & Treatment head with semiconductor cooling temperature adjustable
Crystal temperature -10~5°C
Power requirement AC220V/110V 50~60Hz , 15amp breaker, no electrical modification required,
Languages English

Before
and After

baf
