Laser Hair Removal Systems

SOLO Plus 800HRP
BINARY 800HRV

banner-laser

Features SOLO Plus BINARY

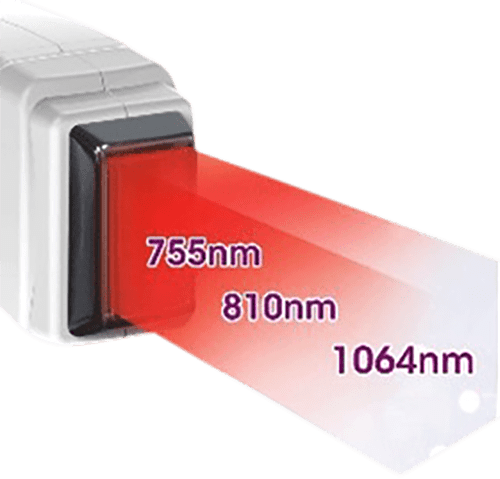

3 built-in wavelengths, 810nm, 755nm and 1064nm simultaneous release . .
-5 Celsius contact cooling tip Arctic Sapphire (built-in) . .
Glide IMT In Motion Technology – Ultra fast . .
10x20mm spot size (extra large) . .
2000 watts heavy duty steady-state motor . .
GERMAN Laser – 1000 watts net laser power . .
GERMAN Laser – 2500 watts net laser power . .
Fluence Up To 120 J/cm2 . .
Pulse Widths Up To 400ms . .
1-10 Hz Frequency output . .
Mobile, Compact and Lightweight Design . .
User-Friendly Quick Start Controls . .
Pre-set parameters for ease of use . .
Non-Invasive, No Down Time . .
Works the same on all skin types . .
20-40 % reduction of growth per treatment . .
Pain free diode laser hair removal .
2 handpieces, 10x10mm and 22x35mm spotsize the largest in the industry . .
Pressurized (vacuum) laser delivery for deepand consistent penetration. .
5000 watts extra heavy duty steady-state motor .

CONTACT US TODAY
1-855-307-4686

REQUEST A QUOTE


laser-machine

    Wavelength Integrated Technology
    Dual Wavelength Advantage

  • 755nm Optimal for light hair and light skin
  • 808nm Works on all skin types /excellent on dark hair and dark skin
  • laser-machine-strture

    soloproduct

    SOLO PLUS Features

  • 2 hand pieces 2 unique spots sizes in one machine
  • 12x12mm & 15x27mm
  • The small 12×12 for nook and cranny’s
  • The Large 15×27 to blaze through legs and chest and back
  • This machine may be smaller in size but big in results and performance.
  • Fluence Up To 100 J/Cm2
  • Pulse Widths Up To 400 Ms
  • Optimal wavelength 810 nm
  • Mobile, Compact and Lightweight Design
  • User-Friendly Quick Start Controls
  • Non-Invasive, No Down Time
  • learnmore_solo

    binary_product

    BINARY Features (includes SOLO features) Plus

  • Vacuum-assist technology with the largest spot size in the industry 22 x 35 mm (painless)
  • Secondary spot size 10mmx12mm…ideal for upper lip, ears, and other hard to reach areas with unwanted hair (painless)
  • 2 hand pieces in one machine
  • Wi-Fi & windows friendly software
  • Client/patient profile software included
  • Fasted PainFREE Treatment Times in the Industry
  • learnmore_minary

dualwave_img

    Wavelength Integrated Technology
    Dual Wavelength Advantage

  • 755nm Optimal for light hair and light skin
  • 808nm Works on all skin types /excellent on
  • dark hair and dark skin
    mission_img1

    AVERAGE TREATMENT TIMES

  • Legs and Back In 30 Minutes
  • Arm Pits 5 Minutes
  • Upper Lip 1 Minutes
  • mission_img2

    AVERAGE TREATMENT TIMES

  • Full Body in 1 hour
  • Legs and Back In 15 Minutes
  • Arm Pits 2 Minutes
  • Upper Lip 1 Minutes
    times-img

Performance Results Documented on, October 27, 2016, Dr. Muhammad Mirza MD

Allied Medical, Madison Ave. Manhattan NY (Training Day)

Name LIPS ARMPITS LEGS BIKINI TOTAL TIME (1 SESSION) SYSTEM
Nicole 2:00 NA NA NA NA BINARY
Subject 1 NA 5:00 NA NA NA BINARY
Subject 2 2:00 4:00 NA 15:00 15:00 BINARY
Subject 3 1:00 6:00 NA 20:20 Brazilian 20:20 Brazilian BINARY
Subject 4 (Fully Body) 1:00 5:00 20:00 20:00 20:00 BINARY
Subject 5 NA 6:00 18:00 17:00 17:00 BINARY
Subject 6 22:00 Back 5:00 NA 20:00 20:00 BINARY
Male Subject* 15:00 Face 25:00 Back 15:00 Upper Chest 20:00 Manzilian 20:00 Manzilian BINARY

tips

POPULATION EFFICACY

Photo Biotech Laser Hair Removal System uses the most effective distinctive long pulse-width 808nm laser that can penetrate to hair follicle and results in the unmatched light absorption by the melanin. PBT 800HRP laser energy is unsurpassed in absorption of the laser. The Latter then heats the hair shaft and hair follicle and disables the hair follicle and oxygen organization of the hair follicle. The advance cooling technology, cools and protects the skin resulting in a relatively painless and comfortable permanent hair removal experience.

body-structure

Problematic and excessive hair growth are seen more commonly in many ethnic populations, including South American, African, Asian- Pacific, Middle Eastern, Mediterranean and African-American subjects. Pseudofolliculitis barbae (PFB), “beard bumps” and ingrown hair is a common disorder in African-American, African-Caribbean and African subjects with tightly curled or coiled facial hair. In PFB, curved hairs emerge from curved follicles at an acute angle and penetrate the nearby skin causing a reaction that is characterized by papules, pustules or small nodules at the point of re-entry.

An 808 nm diode laser with contact cooling and very long pulse widths provides for effective, long-term hair reduction of medium to coarse pigmented hair, even in some darker-skin subjects. Very long pulse widths allow for all skin types to tolerate substantially higher fluences, and thus darker skin types can be safely and effectively treated. Additionally, preliminary results demonstrate that very long pulse widths do not significantly decrease the efficacy for medium to coarse hair reduction for any given fluence. Combined with aggressive contact skin cooling which reduces epidermal damage. It is important to note, however, that such cooling must occur not just prior (pre-cooling), but throughout the entire laser pulse, to maximize protection of the epidermis. This type of concurrent (parallel) cooling is effectively implemented by contacting the skin with a chilled sapphire tip transparent to laser light. The combination of longer pulse widths and the unique contact cooling system reduces skin damage and allows for higher fluences to be safely used on darker skin.

eficany-new

The Skin Ethnic Color Type (ECT)

ECT classifies patients for descriptive purposes based on their skin color and ethnicity. This new classification scale is believed to be significantly more useful in determining appropriate parameters for laser hair removal.

The effectiveness of laser hair reduction depends on many variables, including the subject’s skin type. Laser hair reduction is typically more effective in lighter-skin people with dark hair than in darker-skin people because higher fluences can be safely used. The challenge associated with laser treatment for darker-skin subjects is to avoid surface skin (epidermal and upper dermal) injury due to absorption of light in the pigmented epidermis, while still causing selective destruction of the underlying pigmented hair follicles.

Treatment (laser epilation) operates on the principle of selective photothermolysis. This process combines selective absorption of light energy by the melanin in hair follicles with suitable fluences (energies per unit area) and pulse durations that are equal to or less than the thermal relaxation time (TRT) of targeted follicles in human skin (10-100 ms). However, additional studies indicate that the ideal pulse duration for medium to coarse hair reduction might be longer than the TRT of the hair follicle. Because the chromophore (melanin in the hair shaft and matrix cells) occupies a much smaller volume compared to the follicle, thermal diffusion is necessary for follicle destruction. Therefore, a much longer pulse duration appears to be required to achieve optimal results. Heat is conducted from the shaft and melanized portion of the bulb to surrounding structures according to the laws of thermal diffusion.

tips

BEFORE AND AFTER

before-after

laser-after-before

Specifications

SOLO PLUS
Laser Type Diode Laser
Laser Wavelength 808nrn±2nm or DUAL 755nm/808
Spot Size 12.12mm2, 12.20mm2, 15.27mm2 (optional)
Pulse Width 1-400ms (Adjustable)
Energy 1-160 J/cm2 (adjustable)
Frequency 1-10Hz (adjustable)
Skin Type I-VI Skin Type
Display 8.4′ Color Touch LCD Display
Laser Module Power 800W Device Output 2000W
Cooling Water +Air + Semiconductor + A/C
Voltage 110V/220V±20V, 50/60Hz 10A req.

BINARY
Laser Wavelength 808nm
Max Laser Density 176J/cm3
Frequency 1Hz-3Hz (Traditional Mode), 5/10Hz (SHR Mode)
Pulse Width 15ms-100ms
Working Mode Traditional Mode, SHR Mode
Spot Size 35mm.22mm
Peak Power 2400W + 1500W = 3900W 10A req.
Net Dimension 30 (L).17 (W).67 (H)in
Gross Weight 65Kg on Wheels
